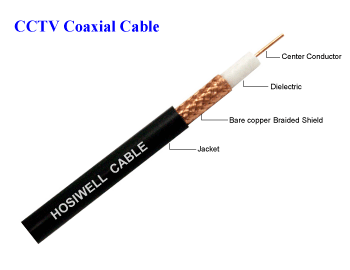

สาย RG11 CCTV Coaxial Cable Standard Analog Video Cable

Product Description
Conductor : No/mm : 1/1.63
                 Mtrl.    : BC
Insulation  : O.D. (mm.): 7.24
                 Mtrl.         : Gas Injection Foam PE
Shield       : 95% BC Braid
Jacket      : O.D. (mm.): 10.3
                 Mtrl.         : PVC
Nom. Capa. (Ω): 75
Nom. Capa. (pF/m.): 53.1
Nominal Velocity of Propagation: 85%. LSZH jacket optional

Standard Attenuation @20°C (dB/100m)

Frequency	F/RG59/U	F-RG6/U	F-RG-11/U
				1 MHz	1.0	1.0	0.6
10 MHz	3.0	2.3	1.1
50 MHz	6.2	4.9	3.0
100 MHz	8.5	6.6	4.3
200 MHz	11.8	9.2	6.2
400 MHz	16.4	13.1	9.5
700 MHz	23.0	17.4	13.5
900 MHz	26.3	20.0	15.7
1000 MHz	27.9	21.3	17.1

Standard: UL 758 type 1354, 1365, 1478, 1792
